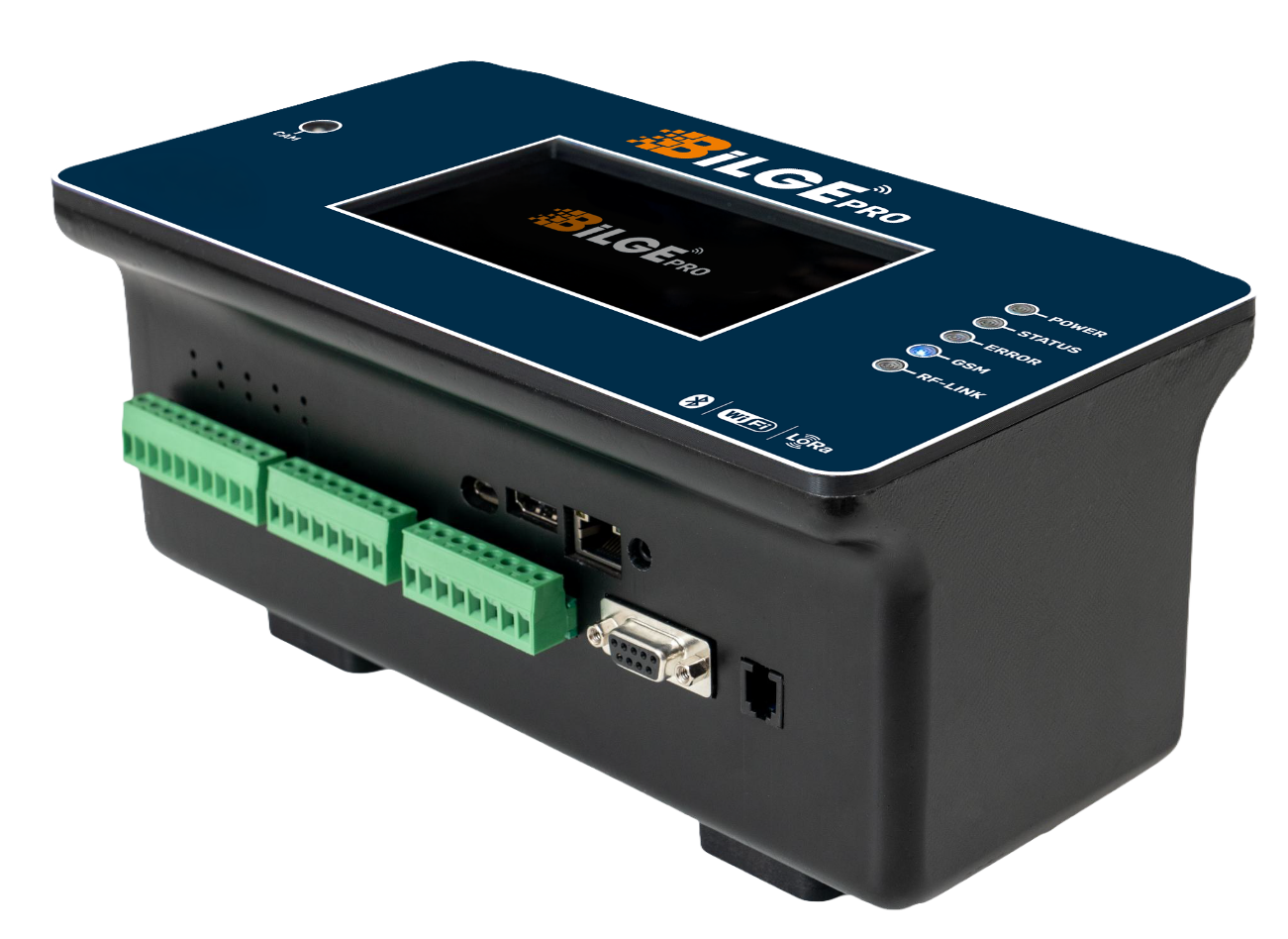

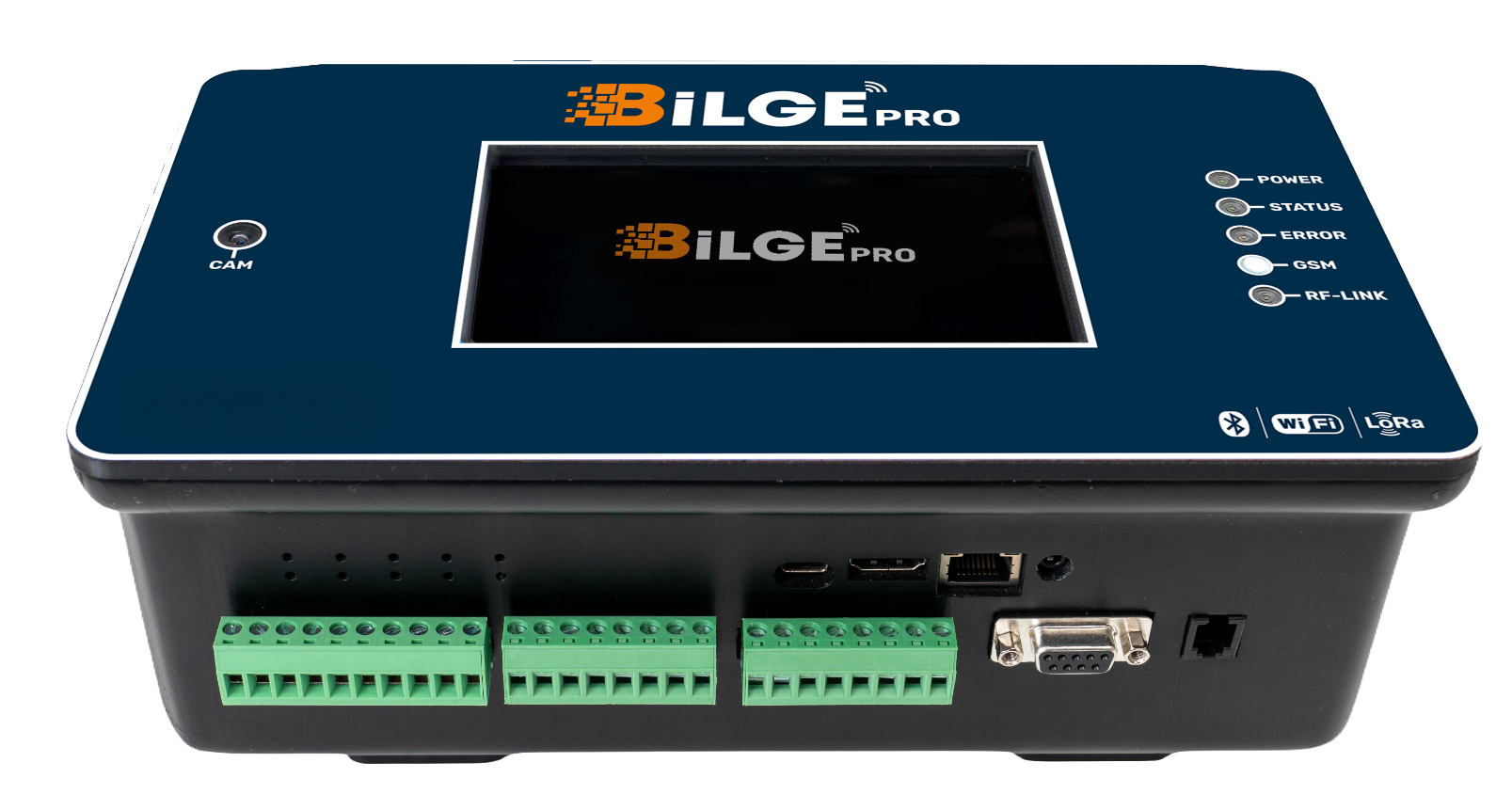

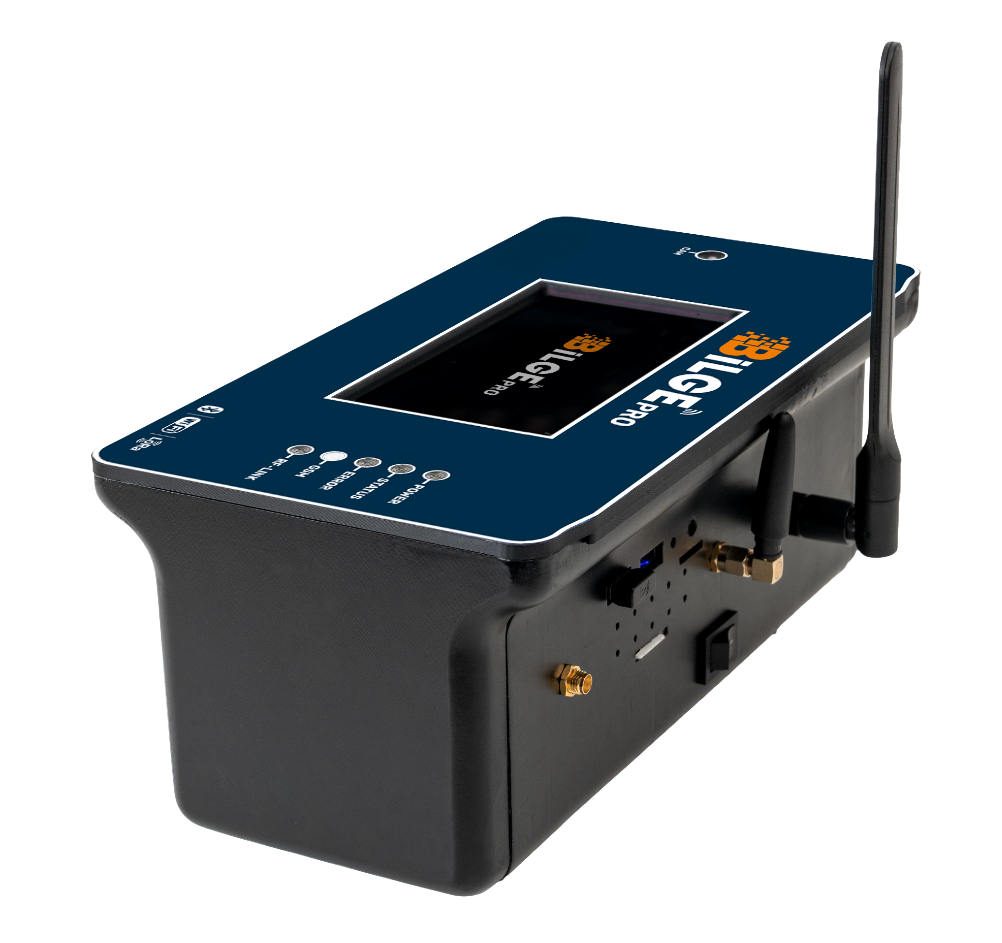

BilgePRO Industrial Panel PC

BİLGE Pro Industrial Panel PC offers innovative solutions for industrial automation processes. It has a wide range of applications, from rivers and dams to groundwater wells and lakes, from irrigation channels to flood control. It can also be effectively used in many sectors, including meteorological stations, hydroelectric power plants, wind and solar energy facilities, wastewater management, coastal design, environmental studies, agricultural irrigation, and SCADA systems.

BİLGE Pro analyzes data obtained from connected sensors and generates detailed reports with the support of artificial intelligence. The device records data in the desired formats and time intervals. Thanks to its built-in 4.5G modem module, it can transmit this data quickly and reliably. By offering both data logger and modem functions in a single device, it meets users’ needs with one integrated solution.

Highly flexible in terms of connectivity, BİLGE Pro supports various protocols such as RS-485, Modbus RTU, and 4–20 mA. With its integrated GSM modem and LoRa module, it can communicate with IoT devices without the need for physical connections. These capabilities enable real-time monitoring of sensors located in remote areas, data collection, and remote management. While sensor data is rapidly transferred to SCADA systems, users can also send commands to remote systems and effectively control the process.

This wide range of applications and flexible communication capabilities offered by BİLGE Pro allow users to easily adapt to diverse industrial requirements. With its high performance and reliability, it becomes an indispensable component of industrial automation.

Technical Specifications

Processor
ARM Quad-core 64-bit 1.8 GHz

RAM
2 GB / 4 GB / 8 GB LPDDR4

Internal Storage
32 GB / 64 GB / 128 GB

Wi-Fi
2.4 GHz / 5 GHz dual-band Wi-Fi
Supports 802.11 a/b/g/n/ac

Bluetooth
BT 5.0

HDMI
2.0

LoRa
433 / 868 MHz ISM, -139 dBm
1.2 kbps – 115.2 kbps, 5 km+ range
Compliant with FCC and ETSI standards

Internal Battery
3 Cell 3500 mAh / 6 Cell 7000 mAh / 9 Cell 10500 mAh
12.6 V 18650 Li-ion battery

Built-in GSM
LTE Cat 4 Module (supports 2G / 3G / 4G)
150 Mbps download speed, 50 Mbps upload speed
Frequency bands: 900 / 1800 / 1900 MHz

AI Performance
1 TOPS
Supported frameworks: Caffe / TensorFlow / TFLite / ONNX / PyTorch / Keras / Darknet

SD Card
1 slot (4 GB / 8 GB / 16 GB / 32 GB / 64 GB / 128 GB)
(100–90 MB/s read/write speed)

Touchscreen Display
5″ (7″ and 10.1″ optional)

Interfaces
HDMI 2.0, USB 3.0, USB 2.0, MIPI DSI, MIPI CSI,
I2C, SPI, UART, ADC, PWM, GPIO, PCIe, I2S, etc.

Ethernet
RJ45 port, 1000 Mbps

Operating Temperature
-20 / +60 °C

Built-in Camera
2 MP (supports recording and photo capture when the panel is open)
1920 × 1920 pixel resolution, JPEG and PNG formats

Physical Specifications

1 × USB 3.0
1 × USB 2.0
1 × Type-C
1 × RJ45
1 × HDMI
1 × Wi-Fi
6 × Digital Inputs
1 × RS232 (Modbus RTU, etc.)
2 × RS-485 (Modbus RTU, etc.)
1 × Bluetooth 5.0
1 × External SD Card Slot
1 × 3.5 mm Speaker Jack
3 × Antenna Connectors (SMA)
4 × Digital / 4–20 mA Outputs
1 × RJ9H
5 × Analog / 4–20 mA Inputs
1 × SIM Card Slot
1 × Internal Battery Voltage Monitoring Input (Onboard)
5″ LCD Touchscreen
1 × Built-in Front Camera
1 × Charging Voltage Monitoring Input
1 × Built-in GSM (Onboard)
1 × Solar Panel Voltage Monitoring Input
1 × Built-in LoRa
1 × Built-in Battery

🌊Water and Hydrology Systems

River, lake, and dam level monitoring
Groundwater and well level tracking
Flood early warning systems
Irrigation canal and regulator control
Coastal and sea level monitoring systems

⚡Energy and Renewable Power Plants

Hydroelectric power plant (HPP) monitoring
Solar power plant (SPP) site management
Wind power plant (WPP) data collection
Battery, inverter, and environmental parameter monitoring
Remote alarm and maintenance notifications

🌦️Meteorology and Environmental Monitoring

Meteorological stations
Air quality measurement systems
Rainfall, wind, temperature, and humidity monitoring
Environmental impact and climate analysis
Long-term data archiving and reporting

🏭Industrial Automation and SCADA

Field terminal for SCADA systems
PLC integrations
Remote control and command transmission
Digital/analog I/O management
Industrial data acquisition and gateway solution

🚜Agriculture and Smart Irrigation Systems

Agricultural irrigation automation
Soil moisture and environmental sensor monitoring
Remote pump and valve control
Solar-powered field systems
Yield and water optimization

🚰Wastewater and Infrastructure Management

Wastewater treatment plants
Pump stations
Level and flow monitoring
Alarm and overflow control systems
Remote monitoring infrastructures tailored for municipalities

🛰️IoT and Smart City Applications

Remote field IoT projects
Smart infrastructure systems
Energy, water, and environmental monitoring platforms
Centralized data collection and management dashboards
