TemplogJR ElectronIc temperature IndIcator

TechnIcal SpecIfIcatIons


Temperature range: -30˚C / + 80˚C (-40˚F / + 176˚F)
Alarm type: 2 hIgh temperatures /2 low temperatures
Alarm IndIcator:
WIth Led (separate color for each Alarm)
Sensor type:Internal
DImensIons:25x25x13 mm
WeIght: 6 grams
IP Class:IP 67
Case materIal:ABS
Battery:3.0 V
Documents:ISO9001: 2008, RoHS
WorkIng time:Up to 2 years or the first alarm situation

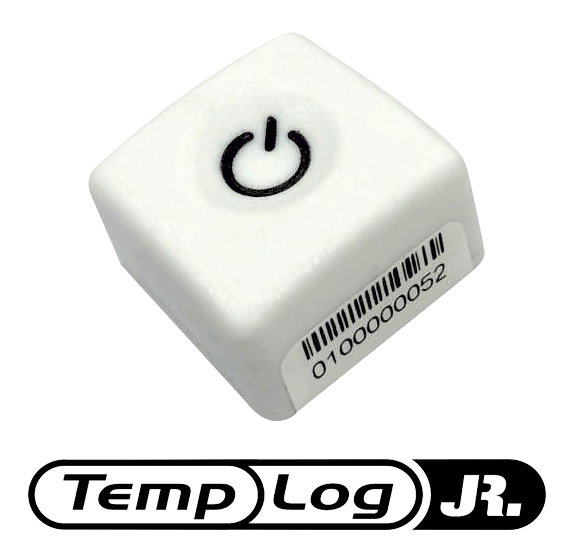

Templog Jr, It is an easy-to-use and low-cost electronic temperature gauge.
Templog Jr The temperature indicator uses 5 internal LEDs to show the current alert status directly; It shows the temperature values of the products without needing any other software.
Provides precise and accurate results according to chemical type indicators.
It has a lightweight and compact structure.
The button on the top allows for easy operation and temperature Control.
Water and Dust Proof.

Reliable with fast response time.

Small size easy to use

Why TEMPLOGJR Temperature IndIcator?

TemplogJR Temperature IndIcator

* Responds to temperature variations in a short time with high speed response time.
* Performs precise and accurate measurements with high accuracy and resolution.
* Offers measurement range up to -30/+ 70 degrees.
* With high and low temperature display at the same time, it can show not only high, but low temperature alarms.
* Can be produced with the desired alarm value at the time of purchase with the replaceable limit Option.
* Start delay and alarm delay Option.
* Can operate for 2 years unless the temperature limits are exceeded and the alarm status.



ClassIc temperature IndIcators

* It has a low response time and a resolution that can not react instantly to temperature variations. Even if the temperature alarm has occurred, there is a possibility that it cannot display it.
* It has a narrow measuring range.
* It only has a high temperature alarm, not a low temperature display.
* Fixed production values are available during purchase and there is no limit option.
* There is no start delay or alarm delay.
* There is a limited measuring time.
* It offers inefficient use in products where low temperatures such as vaccines are important.

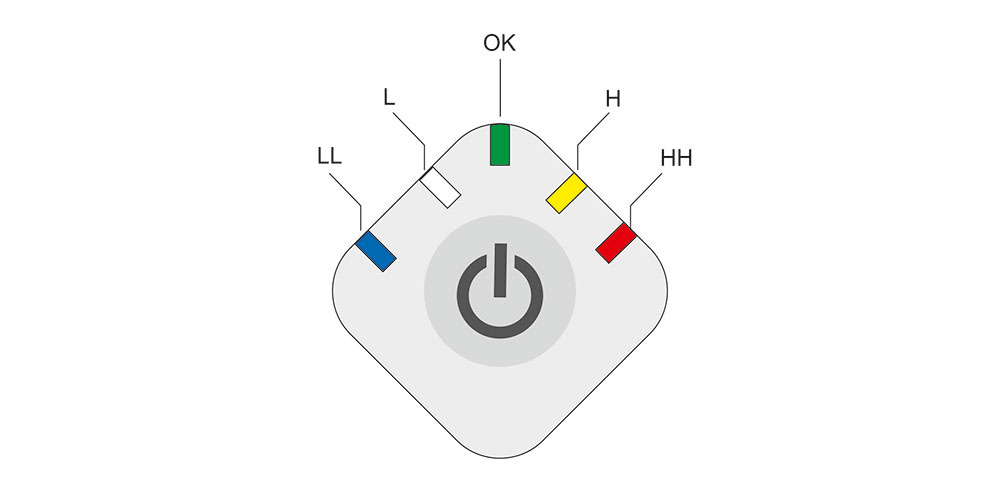

How to use.?

1
2
3
4
5
6
1

Start and Status Control Button. Press and hold for 5 seconds to operate the Device. The green LED will blink for 5 seconds and will then burn, With the green Led burns, the device will be started on the measurement process. (the Green LED will also start after 5 seconds after the measurement starts.)
Press the button 1 time to check the Alarm status The LED on the device will light up according to the alarm status.



2

When the device is shipped Indicates that the number 2 has reached the low temperature alarm. Example: + 2 °C

3

When the device is shipped Indicates that the number 1 has reached the low temperature alarm. Example: + 4 ° c

4

Indicates that the device did not go into an alarm state during shipment.

5

When the device is shipped Indicates that the number 1 has reached the high temperature alarm. Example: + 6 ° c

6

When the device is shipped Indicates that it has reached the high temperature alarm number 2. Example: + 8 ° c

FAQ Frequently Asked Questions


It can be used for 2 years from the date of manufacture or until the alarm has occured.

Devices that have been alerted to the Alarm status cannot be reused for security reasons.

The device will start taking measurements after 15 minutes of running. The reason for this is to avoid false alarms that may occur during boxing or when starting the Shipment.

All alarms have a 15-minute delay in factory Output. This period can be changed by the time the order is notified to our COMPANY.

You can order the device in the desired specifications with a Minimum of 1000 pieces.
You can define specific alarm values or start and alarm delays for your product.
